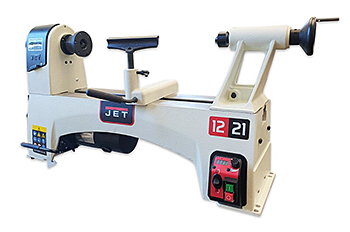

Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
Infinitely variable speed control with 3 belt speeds, from 60 to 3600rpm
Smooth shift from forward to reverse running, digital speed display
The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces
Smooth-running poly-v belt drive suitable for continuous operation, patented one-handed quick-tensioning belt system
Integrated spindle indexing device 24 x 15° for hole patterns and decorative work
Spindle lock on the front of the headstock to easily change the face plate and turning chuck
Tailstock quill with 9mm hole allows material to be drilled through
Three spindle speeds: 60-900/110-1800/220-3600
Optional stand available TR719202A
Specifications:
Motor: 0,73kW (1 HP)
Reverse turning
Swing over bed: 318mm
Swing over tool rest base: 240mm
Centre distance: 500mm
Spindle speeds (rpm): 60–3600, variable
Spindle nose: M33 x 3.5
Spindle index lock: 24 x 15°
Headstock spindle taper: 2MT
Tailstock spindle taper: 2MT
Tailstock hole diameter: 9mm
Tailstock ram travel: 57mm
Steel support (ø/mm): 150+250/15.9
Dimensions (LxWxHmm): 853 x 280 x 450
Weight: 55kg
JWL1221VS
£1,122.50
TR719202A
£348.33
Excl VAT & Shipping

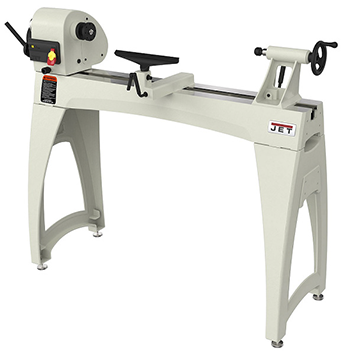

1440VS VARIABLE SPEED LATHE
Do you want a lathe that’s as versatile as your turning? The 1440 lathe from JET can be tailored to accomplish a wide range of projects. With a sliding and pivoting headstock, variable speed, and many other great features this lathe meets the needs of woodturners. Experience the 1440 lathe and see how Versatility Takes Shape.
JET 14” x 40” Woodturning Lathe JWL1440VS
Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
Headstock moves across the entire machine bed, pivots by 360° with locking positions at 0° /30° /60° /90° /135° /180° /270°
Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2,500rpm
Spindle lock on the front of the headstock to easily change the faceplate and turning chuck
Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole
Integrated spindle indexing device 36 x 10°
Adjustable feet and leg stand extenders
Specifications:
Motor (V/kW) 230/1.3n
Swing over bed: 370mm
Swing over tool rest base: 280mm
Centre distance: 1016mm
Spindle speeds (rpm): 280 - 2500, variable
Spindle nose: M33 x 3.5
Spindle index lock: 36 x 10°
Headstock spindle taper: MT2
Tailstock spindle taper: MT2
Tailstock hole diameter: 9mm
Tailstock ram travel: 108mm
Steel support (ø/mm): 300/25.4
Dimensions: 1850mm x 7535mm x 1250mm
Weight: 165kg
JWL1440VS
£1,782.50
Excl VAT & Shipping
Woodworking DRILL PRESS

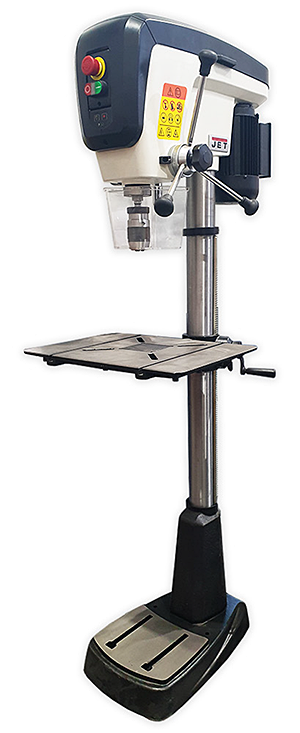

17” FLOOR STANDING DRILL PRESS
ET JDP-17 230v Floor Standing Drill Press JDP17B
Heavy-duty drill press developed specifically for wood workshops
Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
127mm drill stroke with just one turn of the handwheel, for long drill holes
Integrated drill depth stop for precision batch tasks
Efficient 1.0kW induction motor and quiet poly-v belt drive
One-handed belt tensioning for fast speed changes
Xacta-X laser system easily identifies the drill centre
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability
Electric drill chuck protector, belt guard protection and emergency stop as standard
Specifications:
Motor: 0.55kW (0.75 HP) S1
Laser class 2: <1mW, 650nm
Work light: LED
Spindle speed range (rpm): 180 - 2900
Number of spindle speeds: 16
Spindle fixture: 2MT
Keyless chuck (arbor MT2/B16): 1-16mm
Spindle travel: 127mm
Distance spindle to column: 215mm
Spindle distance to table (max): 763mm
Spindle distance to base (max): 1194mm
Table size: 356 x 483mm
Table tilt: 90° left/90° right
Miter t-slot/distance: 13/270mm
Column diameter: 80mm
Dimensions: 723mm x 483 x 1679mm
Weight: 86kg
JDP17B
£749.17
Excl VAT & Shipping

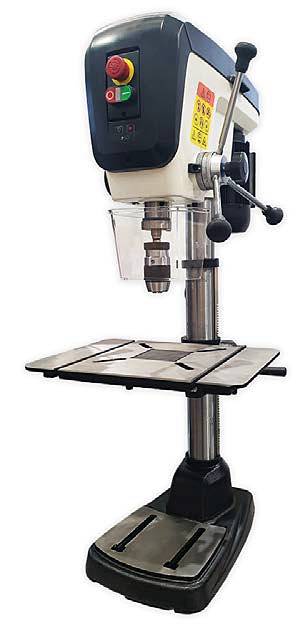

15” BENCHTOP DRILL PRESS
ET JDP-15B 230v Benchtop Drill Press JDP15B
Heavy-duty drill press developed specifically for wood workshops
Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
Integrated drill depth stop for precision batch tasks
Efficient 0.55kW induction motor and quiet poly-v belt drive
One-handed belt tensioning for fast speed changes
Xacta-X laser system easily identifies the drill center
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability
Electric drill chuck protector, belt guard protection and
emergency stop as standard
Specifications:
Motor: 0.55kW (0.75 HP) S1
Laser class 2: <1mW, 650mm
Work light: LED
Spindle speed range (rpm): 180 - 2900
Number of spindle speeds: 16
Spindle fixture: 2MT
Keyless chuck (arbor MT2/B16): 1-16mm
Spindle travel: 80mm
Quill diameter: 47mm
Distance spindle to column: 190mm
Spindle distance to table (max.): 471mm
Spindle distance to base (max.): 683mm
Table size: 320mm x 454mm
Table tilt: +/- 90°
Miter t-slot/distance: 13/270mm
Column diameter: 73mm
Dimensions (DxWxH): 677mm x 434mm x 1115mm
Weight: 71kg
JDP15B
£825.83
Excl VAT & Shipping
Woodworking BANDSAWS

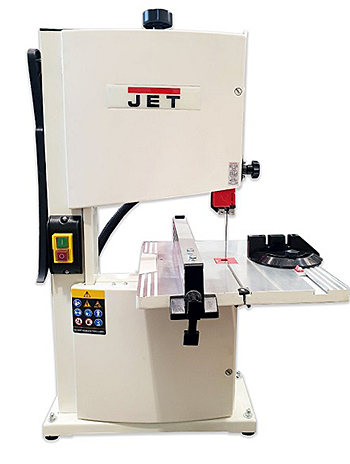

JWBS-9X BANDSAW
JET JWBS-9X Bench Mounted Bandsaw JWBS-9X
Robust cast aluminium work table, can be tilted up to 45°
Ideal for routine, precise
work
Powered with a quiet induction motor
Includes a precise rip fence and mitre gauge
With working lamp to illuminate the cut
Saw blade guide using slide screws and ball bearings
Specifications:
Power Input (230V): 350W
Blade Length: 1575mm
Blade Speed: 660m/min
Blade Width min./max.: 6mm/10mm
Maximum Width of Cut: 230mm
Maximum Depth of Cut: 80mm
Table Size: 300mm x 300mm
Table Tilt: 0° to 45°
Wheel Diameter: 240 mm
Dust Extraction: 53mm
Dimensions (LxWxH): 520mm x 500mm x 740mm
Weight: 20kg
JWBS-9X
£310.00
Excl VAT & Shipping

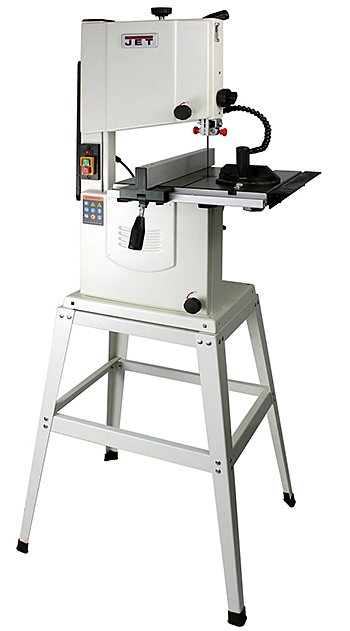

JWBS-10 BANDSAW
The JET JWBS-10 is designed for light-duty, hobby projects in DIY and woodworking shops. The table tilts from 0° to 45°. Sturdy, high-quality fence system. ball bearing blade guides for precise cuts. Powerful induction motor with two saw speeds for high cutting performance, even in continuous operation.
ET JWBS-10 Bandsaw JWBS10
Wheel diameter: 255mm
Cutting width max: 245mm
Cutting height max: 100mm
Sawblade length: 1712mm
Blade width: 3-13mm
Blade thickness: 0.3-0.5mm
Cutting speed: 870 m/min
Specifications:
Power Input / Output (230 V): 600 / 370 W
Speed: 870 m/min.
Blade Length: 1712mm
Blade Width: 3-13mm
Maximum Width of Cut: 245mm
Maximum Depth of Cut: 100mm
Table Size: 335 x 340mm
Table Tilt: 0° to 45°
Wheel Diameter: 255mm
Dust Extraction: 100mm
Dimensions with Stand (LxWxH): 762mm x 496mm x 1511mm
Weight: 36kg
JWBS-10
£407.50
Excl VAT & Shipping

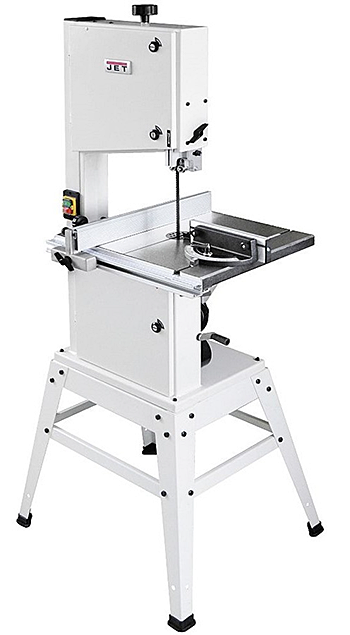

JWBS-12 BANDSAW
The JET JWBS-12 is designed for moderately demanding projects in DIY and woodworking shops. The table tilts from 0° to 45°. The aluminum rip fence is affixed to the front of the cast-iron table. The belt is tracked above and below the table by precision bearing guides. Featuring a safety switch as well as switches on the top and bottom wheel cabinets. This bandsaw is supplied with a stand and excels in design, cut quality and build.
JET JWBS-12 Bandsaw JBS12
With 180mm cutting height and large cast iron table
Sturdy, high-quality fence system
Ball bearing blade guides for precise cuts
Powerful induction motor with two saw speeds for high cutting performance, even in continuous operation
Specifications:
Power Input / Output (230 V): 800 / 500 W
Speed: 370 / 800 m/min
Blade Length: 2240mm
Blade Width: 6 - 15mm
Maximum Width of Cut: 305mm
Maximum Depth of Cut: 180mm
Table Size: 400 x 480mm
Table Tilt: 0° to 45°
Wheel Diameter: 310mm
Dust Extraction: 50mm
Dimensions (LxWxH): 915 x 655 x 1860 mm
Weight: 68kg
JWBS-12
£937.50
Excl VAT & Shipping

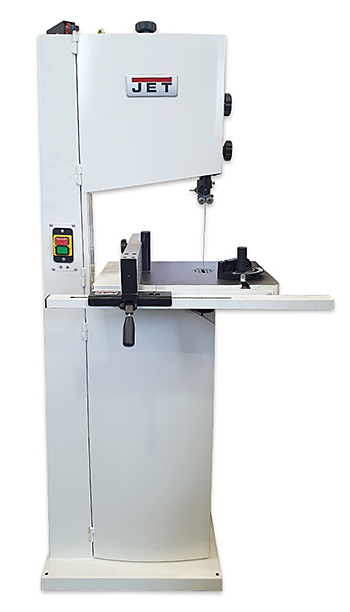

JWBS14Q BANDSAW
The JET JWBS-10 is designed for light-duty, hobby projects in DIY and woodworking shops. The table tilts from 0° to 45°. Sturdy, high-quality fence system. ball bearing blade guides for precise cuts. Powerful induction motor with two saw speeds for high cutting performance, even in continuous operation.
JET JWBS14Q Bandsaw JWBS14Q
Cast iron table which can tilt from -10° to 45°
Upper and lower ball bearing blade guides
The mitre fence is ‘T’ slotted into the table for accuracy, safety and extended capacity
Floor standing welded steel chassis
Rip fence assembly with re-saw attachment 1000-003-128 1000-001-895
Specifications:
Motor (V/kW): 230/1.0
Wheel diameter: 355mm
Maximum cutting height/resaw capacity: 200mm/350mm
Table tilt: -10° / -0° / -45°
Table size: 500mm x 385mm
Blade speed (m/min): 800
Saw blade: 2,560mm
Saw blade width min/max. (mm): 3/25
Blade guide: Ball bearing
Table height from floor: 1,055mm
Dimensions: 830mm x 785mm x 1,750mm
Weight: 97kg
Dust port (diameter-mm): 50
JWBS-14Q
£1264.17
Excl VAT & Shipping
Woodworking SAWS

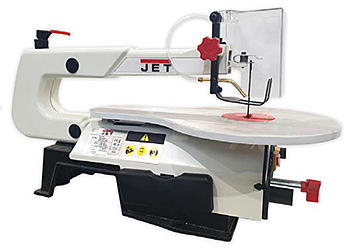

SCROLL SAW
JET Scroll Saw JSS16A
For cutting complex radii in small workpieces of wood, chipboard, fibreboard, plywood and plastic
Variable speed range of 550
1,600 strokes / min.
Quick blade change system
Saw blades with or without pins can be used
Saw blade can be rotated by 90° to extend the workspace
Dust cleaning system keeps the cutting line clear
With eye shield
Specifications:
Motor (V / kW): 230 / 0.09
Speed range (strokes / min): 550 - 1,600, variable
Saw blade (mm): 127 / 130
Stroke length: 15mm
Throat depth: 406mm
Table size: 415mm x 254mm
Max. cutting height (90°, mm): 50
Table tilt: 0° - 45° left
Dust port outside (diameter-mm): 35
Dimensions: 620mm x 340mm x 330mm
Weight: 11.5kg
JSS16A
£160.00
Excl VAT & Shipping

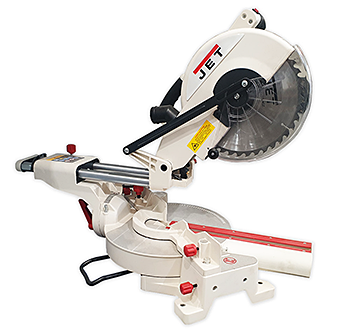

MITRE SAW
JET Mitre Saw JSMS10L
Wheel diameter: 255mm
Cutting width max: 245mm
Cutting height max: 100mm
Sawblade length: 1712mm
Blade width: 3-13mm
Blade thickness: 0.3-0.5mm
Cutting speed: 870 m/min
Fitted laser guide for accuracte cutting
Specifications:
Motor (V/kW): 230/1.5
Blade speed (U/min): 4,500
Blade-size/bore: 254 dia/30mm
Max. cutting depth/height at 90° /45°: (mm) 90/42n
Max. length of cut at 90° /45° (mm): 305/215
Miter gauge angle: 0° - 45°, right and left
Index options: 0° /15° /22.5° /30°
Saw blade tilt: 0° - 45°, left
Dimensions: 1,047mm x 911mm x 597mm
Weight: 18kg
JSMS10L
£308.33
Excl VAT & Shipping
Woodworking PLANER & THICKNESSER

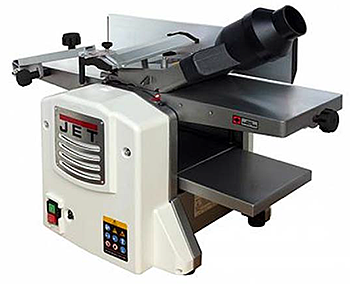

JPT-8B PLANER THICKNESSER
JET JPT-8B Planer Thicknesser
Mobile or stationary, robust dressing planer, for use on construction sites and in workshops
Powerful 1.5 kW induction motor
9,000 rpm ensure top planing results
HSS cutter blocks can be re-sharpened
High-quality thicknessing table and planer for low friction and wear
4-post guide ensures stability and accuracy
Includes:
Planer/thicknesser
Jointing fence
Knife protection
Thicknessing table extension
Dust port
Hose adaptor
2 sliding handles
Thicknessing crank
Diameter gauge
Stand
Specifications:
Motor: 230v
Cutterhead rotation: 9,000 rpm
Feed speed (m/min): 6
Maximum planing width: 200mm
Thicknessing height: 120mm
Maximum depth of cut: 3mm
Maximum thicknessing depth of cut: 2mm
Number of knives: 2
Planer blades: 205mm x 16.5mm x 1.5mm
Length of the thicknessing table (with extension): 270mm (445)
Planing table length: 740mm x 210mm
Dust port: 57 dia/100mm
Dimensions: 780mm x 440mm x 550mm
Weight: 28kg
JPT8B
£589.17
Excl VAT & Shipping

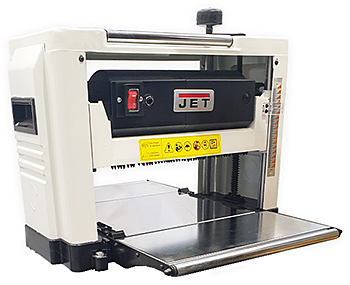

JWP-12 PORTABLE THICKNESSER

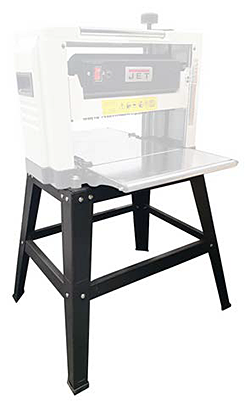

Optional Stand TR10000842
JET JWP-12 Portable Thicknesser
With leather sharpening wheel for a razor-sharp cutting edge in no time
4-post guide ensures stability and accuracy
Quiet induction motor with torque reserve, suitable for continuous operation
18,000cuts /minute ensure top planing results
The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
The thickness table made of cast aluminum is covered with stainless steel for low friction and wear
Folding table extensions with support rollers make working easier
Includes:
100mm Suction connection nozzle
Thicknessing crank
Knife adjustment
4 rubber feet
Mounting accessories
Specifications:
Motor: 230v
Cutterhead rotation: 9,000rpm
Feed speed (m/min): 7
Maximum planing width: 318mm
Thicknessing height: 6mm - 153mm
Max. thicknessing: 2.5mm
Number of knives: 2
Planer blades: 319mm x 18mm x 3mm
Table extension: 370mm x 170mm
Dust port: 50 dia/100mm
Dimensions: 700mm x 600mm x 500mm
Weight: 33kg
JWP12
£422.50
TR10000842
£90.83
Excl VAT & Shipping
Woodworking SANDER

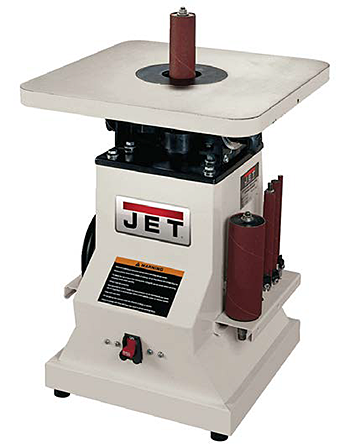

OSCILLATING SPINDLE SANDER
JET Benchtop Oscillating Spindle Sander JBOS-5
25mm oscillating action reduces friction heat to protect wood and prolong sleeve life
Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
Oscillating gears run in a closed lubrication box for a long service life
Powerful 0.7kW induction motor easily handles the toughest sanding projects
Large grey cast iron worktable for precise grinding of large workpieces, tiltable 45°
Specifications:
Motor (V/kW): 230/0.7
Spindle speeds: 1,450 rpm
Spindle diameter (diameter-mm): 6/12/16/38/50
Max. sanding height: 100mm
Table size: 370mm x 370mm
Table tilt: 0° - 45° down
Sanding spindle height: 150mm
Oscillations/Minute: 30
Osciallation stroke: 25mm
Dust port (diameter- mm): 100
Dimensions: 440mm x 430mm x 530mm
Weight: 35kg
JBOS5
£762.50
Excl VAT & Shipping
Woodworking SHARPENERS

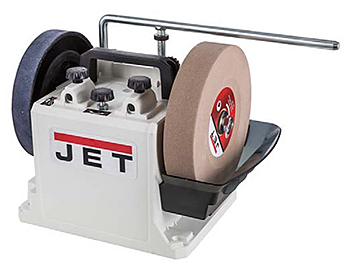

8” WET STONE SHARPENER
JET 8” Wet Stone Sharpener JSSG8
The sanding speed can be kept constant via speed control, independent of the abrasive block diameter
With leather sharpening wheel for a razor-sharp cutting edge in no time
Enclosed motor casing prevents unwanted matter and water getting inside the machine
Integrated tool chest for storing standard sharpening equipment
Accessories included:
Honing compound
Stone grader
Angle finder
Angle setter
Plane camber jig
Specifications:
Motor (V/kW): 230/0.16
Motor speed (rpm): 100 - 200
Leather honing wheel: 180 diameter x 30mm
Grinding wheel: 240mm x 40mm x 12mm
Grinding wheel grain: 250G
Dimensions: 250mm x 220mm x 330mm
Weight: 7.8kg
JSSG8M
£398.33
Excl VAT & Shipping

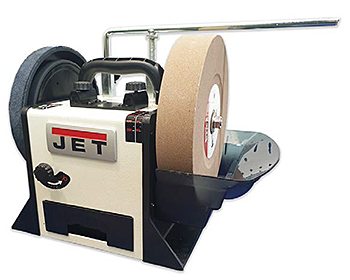

10” WET STONE SHARPENER
JET 10” Wet Stone Sharpener JSSG10
Water bath for continuous wetting and cooling of the cutter
Oversized water tank and guide channel catch water run-off
The sanding speed can be kept constant via speed control, independent of the abrasive block diameter
Stainless steel spindles, mounted in sintered metal casings to protect against wear
Friction wheel pressure adjustment to ensure full torque transmission
With leather sharpening wheel for a razor-sharp cutting edge in no time
Enclosed motor casing prevents unwanted matter and water getting inside the machine
Integrated tool chest for storing standard sharpening equipment
Accessories included:
Honing compound
Stone grader
Angle finder
Angle setter
Plane camber jig
Specifications:
Motor (V/kW): 230/0.16
Motor speed (rpm): 90 - 150
Leather honing wheel: 230 diameter / 30mm
Grinding wheel: 250mm x 50mm x 12mm
Grinding wheel grain: 250G
Dimensions: 406mm x 305 x 330mm
Weight: 15kg
JSSG10M
£454.17
Excl VAT & Shipping
Woodworking AIR FILTRATION

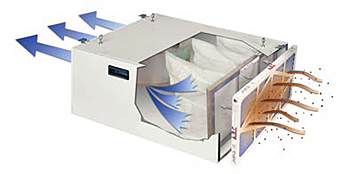

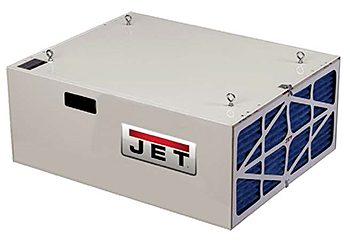

AFS-1000 AIR FILTRATION SYSTEM
JET AFS-1000 Air Filtration System AFS1000
User-friendly air filtration system for medium-sized rooms
Quiet cleaning and filtering of the air
Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
The air filtration system can either be hung on the ceiling or placed on a workbench
Air flow (12/15/20m3/min) and running time (2, 4, 8h) are adjustable with remote control
With an external electrostatic filter and washable bag filter inside
Specifications:
Motor: 230v
Air volume flow rate: 720, 900, 1,200m3/hr
Filter efficiency for particle size (inner/outer): 5/1 Micron
Remote control/timer (h): Yes/ 2, 4, 8
Noise level (LpA, dB): 62/55/68
Dimensions: 768mm x 610mm x 305mm
Weight: 25kg
AFS1000
£485.00
Excl VAT & Shipping

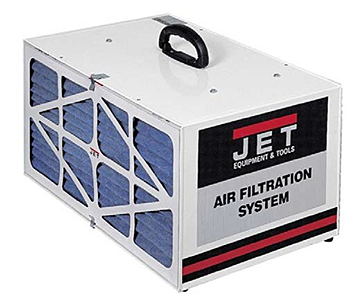

AFS-500 AIR FILTRATION SYSTEM
This is a medium to large workshop filter unit which has the advantage that it can be positioned anywhere in the workshop, either on a bench, a shelf or suspended from the ceiling.
It should be mounted away from ventilation and heating vents and is only suitable for non-metallic dust particles. The unit can be positioned either vertically or horizontally to best utilise the space available.
It is fitted with a pleated cloth main filter and an electrostatically charged pre-filter. An optional charcoal filter is available which can (a) neutralise odours and harmful organic fumes and (b) refresh the air by removing smoke, dust, bacteria, pollen and other harmful microscopic particles.
The machine runs reasonably quietly with noise levels of speed 1: 56 dB. speed 2: 58 dB. and speed 3: 60 dB. Supplied with main filter, electrostatically charged pre-filter and remote control.
For best results leave the AFS-500 running for a few minutes to clean the air after your machines have been switched off, or use the built in 2, 4 or 8 hour timer options to run the filter after you leave the workshop.
JET AFS-500 Air Filtration System
Quiet cleaning and filtering of the air
Filters 98% of all dust particles down to 5 microns and 85% of all particles down to 1 micron
External electrostatic filter and internal filter cartridge, simple to change or clean with careful vacuuming
Volume flow rate can be set to 3 levels: 6/8/10m3/min
Waste airflow can be controlled with bladed air vents
Portable with handle
Specifications:
Motor: 230v
Air volume flow rate: 360, 480, 600m3/hr
Filter efficiency for particle size (inner/outer): 5/1 Micron
Remote control/timer (h): No / 2, 4, 8
Noise level (LpA, dB): 57/59/61
Dimensions: 610mm x 400mm x 310mm
Weight: 15kg
AFS500
£337.50
Excl VAT & Shipping

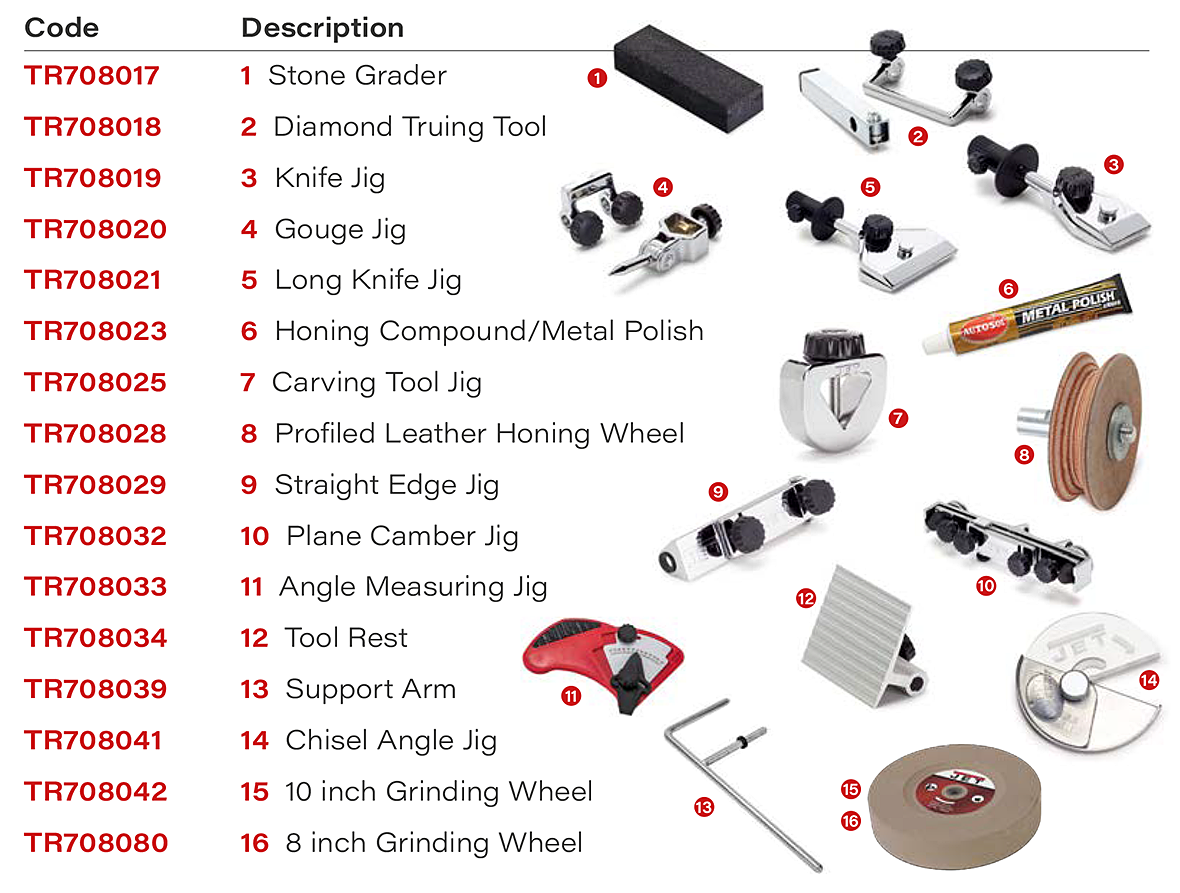

JET - JIGS & ACCESSORIES
Contacting ATA Engineering Products
ATA Engineering Products Ltd
Unit B, ATA House, Boundary Way,
Hemel Hempstead, Herts, HP2 7SS
