ATA Engineering are now main dealers for Trend's new range of cordless power tools. The range includes:

AREA LIGHT

ANGLE GRINDER

BISCUIT JOINTER

CIRCULAR SAW

COMBI DRILL

DETAIL SANDER

IMPACT DRIVER

ORBITAL SANDER

ROUTER KIT

SHEET SANDER

BATTERY 2Ah

BATTERY 4Ah

BATTERY 5Ah

BATTERY CHARGER

High Torque Performance Motors
Increased productivity achieved through our compact and powerful motors, to maximise power output whilst minimising tool size and weight.

Long Lasting Lithium-Ion Batteries
Our Trinity technology protects the battery from incidents such as overcharging or overheating and will also prevent charging when the cells are not in a suitable state to do so due to being too hot or to cold. TXLI batteriess tailored to suit application at hand, offering 2Ah, 4Ah & 5Ah.

Latest Advanced Electronics
Electronics helps to regulate amount of power required to complete an application, ensures no unnecessary power drain to maximise runtime and prevents the user overloading the electronics to provide protection to the user and the tool.


Trend T18S/AG115B 18V Brushless 115mm Angle Grinder

TSM-12 - Benchtop Pocket Cutter



  • High Performance Brushless Motor - Longer motor life More power More run time.
  • Anti-vibration Side Handle - Allows longer usage between breaks helps protect from white finger injuries.
  • Slimilne Tapered Grip - Slim body for increased comfort and less fatigue.
  • Ergonomic Paddle Switch - Long switch for comfort and easy operation on multiple applications.
  • With Cutting and Grinding Guards - For a full range of cutting and grinding applications.
  • Removable Dust Filter - Protects the internal components from dust ingress.
  • 8500RPM - For highly efficient cutting and grinding in all materials.
  • Tool Free Disc Change - Includes quick release and standard nuts for fast and easy disc changes.
  • Fast Tool Free Guard Adjustment - Cam lock clamp secures the guarding in different positions.
  • Two Position Handle - Side handle fits to either side of the tool for left or right hand use.

Specifications:
• Battery: 18V
• Motor: 18V Brushless
• No load speed: 8500rpm
• Cutting disc diameter: 115 mm (4 1/2")
• Disc bore: 22 mm
• Side handle: Anti-vibration
• Weight 1.87kg (bare)




Product includes:
1 x Angle Grinder Body
1 x Blade Changing Spanner
1 x Handle
1 x Qucik Release Flange
1 x Cutting Guard
1 x Grinding Guard
1 x Instruction Manual


Trend T18S/BJKB 18V Biscuit Jointer

TSM-12 - Benchtop Pocket Cutter



  • Trend High Performance Motor - Built for power and endurance
  • 6 Cutting Depths - For No 0 10 and 20 Biscuits plus additional ’Maximum’ Duplex and Simplex settings
  • 0 - 90 Degree Cutting Angles - Covers multiple jointing applications
  • 35mm Fence Adjustment - Up to 35mm from an edge for setting biscuits into thicker stock
  • Tilting Fence Indents– 0 45 and 90 degrees settings for fast positioning on common angles
  • Cam Lock Rack and Pinion Height Fence – Precision height adjustment with cam lock retention
  • Milled Reference Faces - For accurate positioning on all jointing styles
  • Anti-slip Rubber - Rubber cutter aperture prevents slippage as the cutter engages the workpiece
  • Top Mounted Sliding Switch - Easily accessible sliding switch for left or right-handed operation

Product includes:

CR/BJB100T Biscuit Jointer Blade Attachment Plate Dust Bag and Adaptor and Vacuum adaptor (fits T35 and T32 Dust Extractors)


Trend T18S/SLB 18V LED Area Light

TSM-12 - Benchtop Pocket Cutter



  • 3 Light Levels - Brightness levels can be set to suit the work
  • 10W 20W & 30W Settings - low bright and extra bright light levels equivalent to 1100 2000 and 2700 Lumens
  • Exceptional Runtime - Hours of continuous light to get the job done
    360 Degree Rotation - To reposition the beam and project the light effectively
  • Hook Mount - Additional positioning options to direct the beam
  • Weatherproof Design - For external use and in wet conditions
  • Carry handle






Specifications:

  • Battery: 18V
  • Rated power: 10/20/30W
  • Light regulation: 1100/2000/2700 Lumens
  • Weight: 1.67kg (bare)
  • Size: 250x210x260 mm




Product includes:
1 x Site Light Body
1 x Instruction Manual


Trend T18S/CS165B 18V 165mm Brushless Circular Saw

TSM-12 - Benchtop Pocket Cutter



  • High Performance Brushless Motor - Longer motor life more Power More run time
  • Front Mounted Laser - Accurate quick alignment to cut line
  • 50 degree Maximum Bevel Cut –5 Degrees overcut for out of square applications
  • Aluminium Base - Precision aluminium casting for positive alignment with straightedge guides
  • Aluminium Guarding - All metal top and bottom guarding for maximum durability and safety
  • 165mm Diameter Blade - Popular blade size covers a range of tooth styles and pitches
  • 24 Tooth TCT Blade - High quality Trend blade crosscut and ripping work (CSB/16524TC)
  • Compact Size - Manoeuvrable design for easy control
  • Top Handle - Front top grip for additional control and support
  • 55mm Cut Depth at 90 Degrees - Ideal for rafter and joist cutting on first fix work
  • 40mm Cut Depth at 45 Degrees - Allows mitre cuts on CLS construction timber


Trend T18S/CDB 18V Brushless Combi Drill

TSM-12 - Benchtop Pocket Cutter



  • High Performance Brushless Motor - Longer motor life more Power More run time
  • 13mm Capacity 3 Jaw Sleeveless Jacobs Chuck - All metal construction for fast single-handed bit swaps
  • All Metal Gearbox - Maximises power through the drill and increases lifespan
  • 2 Speed Gearbox - Ensures the drill is working to maximum performance levels at all times
  • 3 Functions - For drilling in wood and metal masonry plus screwdriving functions
  • 0 - 500 & 0 - 2000 No Load Speeds - Low speed gear setting for extra power when boring bigger diameters in timber fast speed for efficient drilling in metal and masonry
  • Mode Selection Collar - separate over-ride collar for torque settings for fast changeover between drilling and driving operations
  • 21 Torque Settings - Allows controlled repeatable driving in all materials
  • Slimline Grip - Ergonomic grip for comfortable control over extended periods
  • LED Worklight - illuminates the work area to help positioning

Specifications:

  • Battery: 18V
  • Motor: 18V Brushless
  • No load speed: 0-5000/0-2000 (rpm)
  • Impact rate: 0-9000/0-3600 (ipm)
  • Chuck: Jacobs 13 mm/Masonry 13 mm/Wood 32 mm
  • Max torque: 45 Nm
  • Machine weight: 1.4kg (bare)
  • Work light: LED
  • Length: 210 mm
  • Runtime claim: Up to 33 Locks drilled (200 x 70 mm holes drilled in PSE - 6 holes per 63mm mortise lock)




Product includes:
1 x Combi Drill Driver
1 x Belt Hook
1 x Instruction Manual


Trend T18S/IDB 18V Brushless Impact Driver

TSM-12 - Benchtop Pocket Cutter



  • High Performance Brushless Motor - Longer motor life more Power More run time
  • Two Speeds - Increased control when driving thin gauge screws and heavy duty fixings
  • 130Nm Torque - High torque rating for driving longer and heavier gauge fixings
  • No Load Cut Off Reverse Function - Automatically switches off once the load is free of torque
  • Variable Speed Trigger - Allows precision starting and final positioning of fixings to prevent shearing
  • 1/4in Sleeve Chuck - Quick release chuck takes all standard 1/4in hex shank bits
  • LED Worklight - Illuminates the work area to aid positioning
  • Toggle Switch Selectors - Push button switching between speed and ‘No Load Cut Off’ functions
  • Compact Profile - For access into confined areas
  • Slimline Sculpted Grip - Ergonomic grip for comfortable control over extended periods

Technical Specifications:

  • Motor: Brushless
  • Battery: 18V
  • Chuck size: 1/4 inch hex
  • No load speed: low 0-2400 - high 0-2800 rpm
  • Impact rate: 3000 (ipm)
  • Max torque: 130 Nm
  • Trigger: Variable speed
  • Weight: 1.13kg (bare)
  • Worklight: LED light
  • Runtime claim: Up to 850 x 50mm screws (5Ah battery in PSE)






Product includes:
1 x Impact Driver Body
1 x Instruction Manual

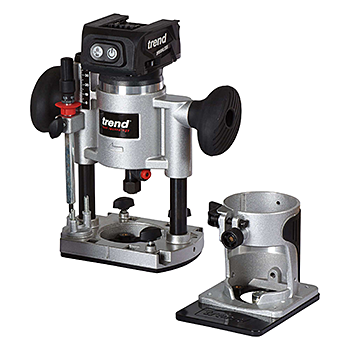

Trend T18S/R14KB 18V 1/4 Brushless Router Kit

TSM-12 - Benchtop Pocket Cutter



Trend High Performance Brushless Motor – Longer motor life, more Power, More run time

  • 60mm Plunge Depth - Deepest plunge depth on the market increases range of cutters and applications
  • Dual Bases - Plunge and Trim base options for a wide range of applications including Trend trade hinge jigs
  • Guide Bush Centralising Feature - For accuracy and precision when using jigs and templates
  • Trend Base Configuration - Direct fit for Trend guide bushes for increased range of routing applications
  • Variable Speed Motor - Controlled cutting on materials including hard and soft woods, sheet materials, laminates and plastics
  • Micro-adjustable Depth Setting - For precision jointing and inlaying tasks
  • Quick Release Plunge Lock – For fast and controlled plunge routing
  • Extended Trim Base – Elongated base plate for controlled offset pressure to prevent tipping
  • Adjustable Depth Stop – Adjustable collar on depth post for fast repeatable cutting depths
  • Multi Slit 1/4in ER Collet – Double lock safety feature for concentric gripping and maximum cutter shank support
  • Twin LED Lights – Built in LED’s illuminates the work area for finer control and accuracy
  • Safety on/off Switch – safety switch locks the router to prevent accidental operation
  • Dust Kit – Extraction adapter kit to help capture harmful dust particles
  • Side Fence – For grooving and moulding in from an edge

Technical Specifications:

  • Battery: 18V
  • Motor: 18V Brushless
  • Collet: 1/4 inch Multi-slit
  • No load speed: 10000-30000/min
  • Weight: 2.25kg (bare with plunge base) (2.79kg with 4Ah battery fitted)
  • Depth of cut: 37 mm with Trim base
  • Depth of cut: 60 mm with Plunge base
  • Base material: Aluminium






Product includes:
1 x Router Body
1 x Router Plunge Base
1 x Router Trim Base
1 x Collet 1/4 inch (6.35mm)
1 x Plunge Base Side Fence
1 x Trim Base Side Fence
1 x Line Up Cone and Pin
1 x Guide Bush 16mm
1 x Spanner
1 x Dust Spout for Plunge Base
1 x Dust Spout for Trim Base
1 x Tough Protective Case
1 x Instruction Manual


Trend T18S/ROS125B 18V 125mm Random Orbital Sander

TSM-12 - Benchtop Pocket Cutter



  • Trend High Performance Motor - Built for power and endurance
  • 6000 - 12000 Orbits Per Minute - For controlled sanding on a range of materials
  • Eccentric Orbit Pattern - For fast stock removal and diffused surface finish
  • 2mm Orbit - Small orbit for finer finish
  • 122mm EVA Hook and Loop Base - Fast swapping between grits
  • Dust Sealed Switch - Prevent dust ingress to ensure consistent performance
  • 8 Hole Extraction Base - Fits the full range of 125mm diameter Trend Abrasives
  • Dust Extraction Port - For maximum dust capture
  • Rubber Overmoulds - Minimises vibration for enhanced comfort
  • Supplied with 3pc Trend Abrasive Pack - 80 120 180 Grit

Technical Specifications:

  • Battery: 18V
  • Motor: Brushed
  • Speeds: 6000-12000 rpm
  • Base size: 122 mm diameter
  • Orbit diameter: 2 mm Eccentric
  • Extraction holes: 8
  • Abrasive retention: Hook and Loop
  • Switch: Dust sealed
  • Weight: 1.18kg (bare)






Product includes:
1 x Random Orbit Sander Body
1 x Dust Bag
1 x Dust Spout Adaptor
3 x Abraasive Sheet
1 x Instruction Manual


Trend T18S/DSB 18V Detail Sander

TSM-12 - Benchtop Pocket Cutter



  • Trend High Performance Motor - Built for power and endurance
  • 11000 Orbits Per Minute - For controlled sanding on a range of materials
  • 1.6mm Orbit - For fine detailed finish sanding
  • EVA Hook and Loop Base - Fast swapping between grits
  • Dust Sealed Switch - Prevent dust ingress to ensure consistent performance
  • 11 Hole Extraction Base - Fits the full range of Trend Detail Abrasives
  • Dust Extraction Port - For maximum dust capture
  • Rubber Overmoulds - Minimises vibration for enhanced comfort
  • Supplied with 3pc Trend Abrasive Pack - 80 120 180 Grit

Technical Specifications:

  • Battery: 18V
  • Motor: Brushless
  • Speeds: 11000 rpm
  • Base size: 151 x 102 mm
  • Orbit diameter: 1.6 mm Eccentric
  • Extraction holes: 11
  • Abrasive retention: Hook and Loop
  • Switch: Dust sealed
  • Weight: 1.06kg (bare)
  • Runtime claim: Up to 65 minutes sanding (Beech worktop)


Product includes:
1 x Detail Sander Body
1 x Dust Bag
1 x Dust Spout Adaptor
3 x Abrasive Sheet
1 x Instruction Manual


Trend T18S/TSSB 18V Third Sheet Sander

TSM-12 - Benchtop Pocket Cutter



  • Trend High Performance motor - Built for power and endurance
  • 13000 Orbits Per minute - Fast fine sanding on all materials
  • 2mm Orbit - Small orbit for premium finish
  • EVA Hook and Loop Base - Fast swapping between grits
  • Wire Retention Clamps and Punch Plate– For use with standard sheet/roll abrasive papers
  • Dust Sealed Switch - Prevent dust ingress to ensure consistent performance
  • 184mm x 93mm Base - Ideal for larger flat surfaces
  • 8 Hole Extraction Base - Fits the full range of Trend 1/3rd sheet Abrasives
  • Dust Extraction Port - For maximum dust capture
  • Rubber Overmoulds - Minimises vibration for enhanced comfort
  • Supplied with 3pc Trend Abrasive Pack - 80 120 180 Grit






Trend T18S/BA2A 18V 2Ah TXLI Battery

TSM-12 - Benchtop Pocket Cutter



  • 18 Volt Lithium Ion Cells: High performance cells for superior run times
  • Trend Tool Connection: Lock button for secure retention compatible with all Trend 18v Lithium Ion battery tools
  • 2Ah 4Ah and 5Ah Battery options - Three power capacities and sizes to set up the tools to suit the work in hand
  • High Current Output 4Ah: 21700 cells Compact with reduced weight for better balance and reduced user fatigue
  • 6Ah Fast Charging - 2Ah-32mins 4Ah -48mins 5Ah-54mins Charge times
  • LED Charge Indicator - 4 LED indicators for fast indication of charge remaining/stored
  • Tough Outer Casing: Heavy duty construction protects against damage


Specifications:

  • Battery=18V
  • Amp Hour Capacity=4Ah
  • Cell type=2Ah - 21700 cells
  • Charge time=48 minutes
  • LED charge indicators=4 LED




Trend T18S/BA4AM 18V 4Ah TXLI Battery

TSM-12 - Benchtop Pocket Cutter



  • 18 Volt Lithium Ion Cells: High performance cells for superior run times
  • Trend Tool Connection: Lock button for secure retention compatible with all Trend 18v Lithium Ion battery tools
  • 2Ah 4Ah and 5Ah Battery options - Three power capacities and sizes to set up the tools to suit the work in hand
  • High Current Output 4Ah: 21700 cells Compact with reduced weight for better balance and reduced user fatigue
  • 6Ah Fast Charging - 2Ah-32mins 4Ah -48mins 5Ah-54mins Charge times
    LED Charge Indicator - 4 LED indicators for fast indication of charge remaining/stored
    Tough Outer Casing: Heavy duty construction protects against damage

Specifications:

  • Battery=18V
  • Amp Hour Capacity=4Ah
  • Cell type=2Ah - 21700 cells
  • Charge time=48 minutes
  • LED charge indicators=4 LED


Trend T18S/BA5A 18V 5Ah TXLI Battery

TSM-12 - Benchtop Pocket Cutter



  • 18 Volt Lithium Ion Cells: High performance cells for superior run times
  • Trend Tool Connection: Lock button for secure retention compatible with all Trend 18v Lithium Ion battery tools
  • 2Ah 4Ah and 5Ah Battery options - Three power capacities and sizes to set up the tools to suit the work in hand
  • High Current Output 4Ah: 21700 cells Compact with reduced weight for better balance and reduced user fatigue
  • 6Ah Fast Charging - 2Ah-32mins 4Ah -48mins 5Ah-54mins Charge times
  • LED Charge Indicator - 4 LED indicators for fast indication of charge remaining/stored
  • Tough Outer Casing: Heavy duty construction protects against damage

Specifications:

  • Battery=18V
  • Amp Hour Capacity=5Ah
  • Cell type=18650 cells
  • Charge time=54 minutes
  • LED charge indicators=4 LED


Trend T18S/CH6A Fast Charger (230v)

TSM-12 - Benchtop Pocket Cutter



  • 6Ah Fast Charging - 2Ah: 32mins 4Ah: 48mins 5Ah: 54mins
  • Air Cooled - Reduces heat build-up for more efficient faster charging
  • LED Charge Indicators - Easy read indicators show ‘Charging’ and ‘Full Charge’ states
  • Protective Side Vents - Prevents dust and debris ingress

Specifications:

  • Charging current=6A
  • Chrge time
  • 2Ah battery=32 minutes
  • 4Ah Slimline battery=48 minutes
  • 5Ah battery=54 minutes
  • Cooling=Air cooled
  • Charge indicators=LED charging and charge lights






Contacting ATA Engineering Products

ATA Engineering Products Ltd
Unit B, ATA House, Boundary Way,
Hemel Hempstead, Herts, HP2 7SS

Telephone: +44 (0)1442 264411
Email: sales@ataeng.com

Opening Hours:
Monday - Thursday: 8.30am - 5.30pm
Friday: 8.30am - 1.15pm





LINKS

TESTIMONIALS
SUPPORT SERVICES
ABOUT ATA AND OUR HISTORY
PURCHASING FROM ATA
